The Roadmap and Org Chart, a Deep Dive

Excited to unpack this: one JSON object describes the whole org. Your washer and iron under machine, and one entry per deliverable under chart. Both the CLI and the platform’s upload accept exactly this shape — it’s what @washy-washy/core’s parseConfig validates. No exceptions, no special asks.

{
  "machine": { "washer": { "..." }, "iron": { "..." } },
  "chart": [{ "clothing_type": "..." }]
}

The roadmap

Each entry under chart is one deliverable:

Field	What goes in it
`clothing_type`	What you call the deliverable — this is the card’s personal brand
`detergent`	Which solution and how much
`fabric_softener`	`yes` or `no`
`temperature`	A temp check your machine offers
`spin`	A spin your machine offers
`duration`	Roughly the sprint length, as `~H:MM`
`program`	A strategy, spelled exactly as on the fascia
`options`	Growth levers, pipe-separated; empty for none
`ironing`	`yes` or `no` — whether it gets aligned at all
`ironing_notes`	Prose: the alignment plan, or why there isn’t one. Often empty
`iron_setting`	A thermostat position. Empty when `ironing` is `no`
`drying`	Prose: the post-wash ops plan
`colour_group`	`white`, `colour`, `dark`, `sport` or `any`
`mix_tags`	Pipe-separated: `lint-shedder`, `lint-magnet`, `dye-bleeder`, `solo`
`notes`	Anything else worth a shoutout

Every machine-facing value — program, temperature, spin, options, iron_setting — is validated against what your own machine offers, so a typo fails with the specific row and column rather than shipping a card that tells you to align the dial somewhere it doesn’t go. Radical transparency, baked in.

The org chart

machine.washer lists the dial’s labels in physical order, plus the temp checks, spins and growth levers the display offers. machine.iron lists the thermostat’s positions, from coolest to hottest — think of it as the org’s own leveling ladder. Copy every label exactly as printed in front of you, in whatever language that is — nothing here ever translates a fascia label, because a chart you have to translate back while standing at the machine is a worse deliverable than no chart.

The order of washer.programs is load-bearing — this isn’t a metaphor, it’s the literal mechanism: the first entry is the off position, drawn at twelve o’clock, and every other tick’s angle comes from where it sits in the list. Leaving one out doesn’t just remove it — it re-orgs every tick after it.

The platform’s own /config/machine editor writes this same shape — reordering the strategy list there does exactly what reordering the JSON array would. No surprises, no scope creep:

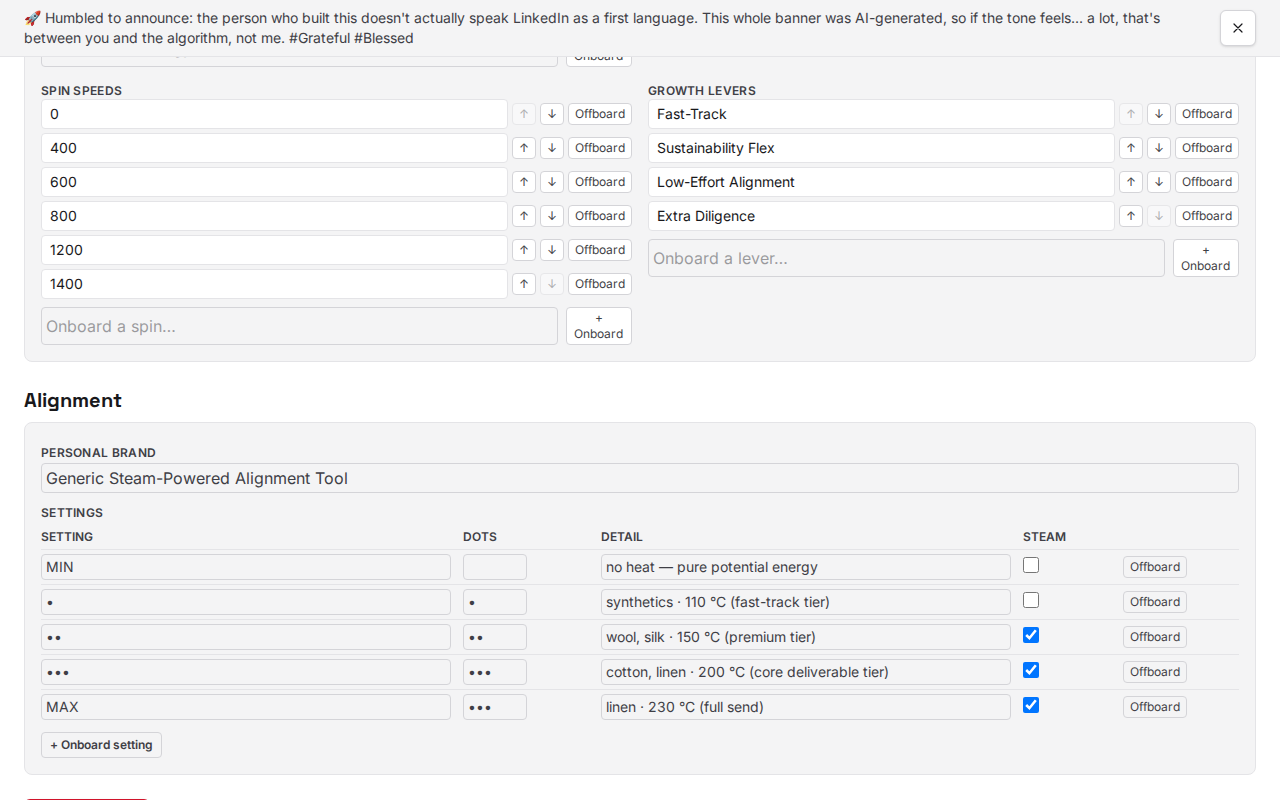

The machine editor's spin speeds, buttons and iron settings table

{
  "washer": {
    "name": "Generic front loader",
    "capacity": "1–8 kg",
    "programs": ["Off", "Cottons", "Delicates / Silk", "Wool"],
    "temperatures": ["cold", "20", "30", "40", "60", "90"],
    "spins": ["0", "400", "600", "800", "1200", "1400"],
    "options": ["Speed", "Eco", "Easy Iron", "Extra Rinse"]
  },
  "iron": {
    "name": "Generic steam iron",
    "settings": [
      {
        "key": "min",
        "dots": "",
        "label": "MIN",
        "detail": "no heat",
        "steam": false
      },
      {
        "key": "3",
        "dots": "•••",
        "label": "•••",
        "detail": "cotton, linen · 200 °C",
        "steam": true
      }
    ]
  }
}

What can co-locate in the wash

Two deliverables may share a drum only when all of these hold, checked in order — the first one that fails is the reason a compatibility matrix would show, no politics involved:

Neither is tagged solo — no lone wolves in this sprint.
If either is a lint-shedder, the other must be too — alignment goes both ways.
Their colour_group matches (any matches everything — a true culture add).
program, temperature, spin and the set of options are identical.

Deliverables merge onto one card, sharing a single dial drawing, when everything you physically set agrees: strategy, temperature, spin, options, whether the culture-add softener goes in, and where the iron’s thermostat points. Prose fields (detergent, drying, notes) are deliberately not part of that check — two deliverables can want different solutions and still share a card, and the card lists both lines against the deliverable they belong to. Everyone wins.
